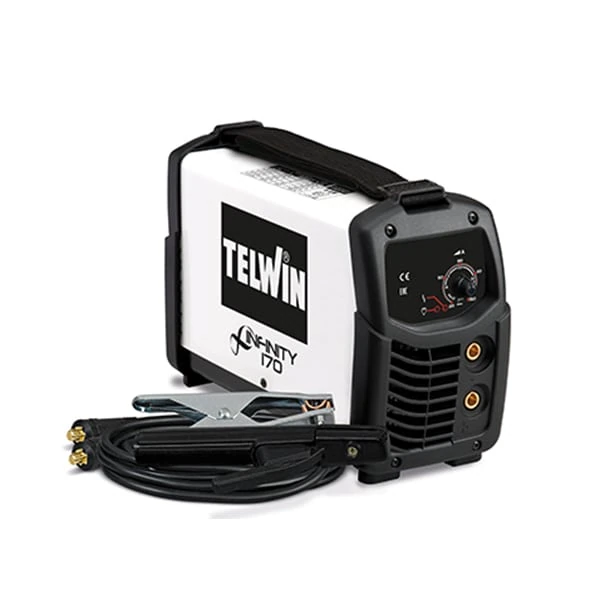

MMA electrode welding machine infinity 170, Telwin 816124

MMA and TIG inverter, electrode welding machine in direct current (DC) with scratch striking.
Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron, etc.
Features:
– compact and light
– high welding current stability in spite of mains voltage fluctuations
– arc force, hot start and anti-stick devices
– thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.
Complete with MMA welding accessories.

• CODE: 816124
• SINGLE PHASE MAINS VOLTAGE: 230 V
• MAINS FREQUENCY: 50 / 60 Hz
• CURRENT RANGE: 20 – 150 A
• MAX CURRENT: 140 @ 25 % A
• DC CURRENT: 80 A
• MAX NO LOAD VOLTAGE: 75 V
• MAX ABSORBED CURRENT: 28 A
• ABSORBED CURRENT AT 60%: 14 A
• MAX ABSORBED POWER: 4,5 kW
• ABSORBED POWER AT 60%: 2 kW
• MOTORGENERATOR MINIMUM POWER: 6 kW
• MAINS FUSE: 16 A
• EFFICIENCY: 87 %
• POWER FACTOR: 0,7
• D. USABLE ELECTRODES IN DC: 1,6 – 4 mm
• PROTECTION DEGREE: IP23
• DIMENSIONS: 35,5 x 14,5 x 24 cm
• WEIGHT: 4,94 kg
