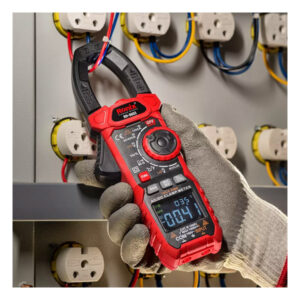

Digital Clamp Multimeter, Ronix RH 9603
77.00 $
- DC Voltage: 600mV/6V/60V/600V/1000V
- AC Voltage: 600mV/6V/60V/600V/750V
- Current DC: 60A/600A/1000A
- Current AC: 60A/600A/1000A
- Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
- capacitance: 10nF/100nF/1μF/10μF/100μF/1mF/10mF/100mF
- Frequency: 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz
- Duty Cycle: 1%~99%
- “Temperature (°C/°F)”: -20°C~1000°C. -4°F~1832°F
- Counts: 6000 counts
- AC bandwidth: 1KHz
- LCD Size: 43.6*32.5mm
- Sampling rate: Yes
- Auto/Manual range: Yes
- Continuity: Yes
- Diode: Yes
- Data hold: Yes
- NCV: Yes
- Back light: Yes
- Flashlight: Yes
- DCA ZERO: Yes
- Low battery indication: Yes
- Auto Power Off: Yes
- True RMS: Yes
- shockproof protection: Yes
- Analog Bar Graph: Yes
- VFD: Yes
- INRUSH: Yes
- MAX/MIN: Yes
- REL: Yes
- LowZ: Yes
- V-LoZ: Yes
- LPF: Yes
- VA screen: Yes
- Body Material: ABS
- Power: 3xAAA(1.5V)Batteries
- Weight: 320gr
- operating temperature range: 0~40°C
- size: 240*85*47mm

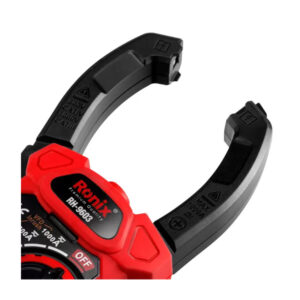

- Jaw opening: 40mm
- Jaw Size: ø35*60mm
- Safety Rating: EN61010-1,-2-030 EN61010-2-033, EN61326-1 CAT III 1000V
- Includes: probe, EVA toolkit, manual
- practical Digital Clamp Multimeter which can accurately measure the value of various parameters like AC/DC current, AC/DC voltage, frequency, resistance, continuity, diode, capacitance, temperature, non-contact AC voltage (NCV) detection, and live detection.
- Jaw opening measures AC/DC current in a conductor up to 35mm
- Overload protection for all measurement range
- Low input impedance helps to prevent false readings due to ghost voltage
- Low Pass Filter (LPF) for accurate measurement of variable frequency drive signals when measuring motors and transformer
- The flashlight function bring comfort and safe work in dark spaces
- Provide with Non-contact AC Voltage detection function
- Achieving a high level of safety in a compact body and lightweight design
- Robust body design with anti-shock cover
- Auto power off within 15 minutes if there is no operation, helps conserve the battery
- Designed and conforms to IEC61010-1, CAT III 1000V, safe and reliable
- Ideal for electrical equipment testing and maintenance
Clamping digital multimeters, also known as clamp meters, are versatile electrical testing devices that can measure current flow without the need for physical contact with the circuit. They work by clamping around a conductor, such as a wire, and detecting the magnetic field generated by the current passing through it. This allows the meter to measure the current directly, providing accurate readings. Clamp meters are beneficial for electricians, technicians, and DIY enthusiasts who need to measure electrical current in a non-invasive manner. Ronix RH-9603 is a digital multimeter that offers all of the basic functionalities of a clamping multimeter while also offering other useful features such as a flashlight or true RMS capability. If you are in the market for a new clamping digital multimeter, Ronix RH-9603 is one of the best options available that combines excellent performance with an affordable price.
| Brand | RONIX |
|---|
